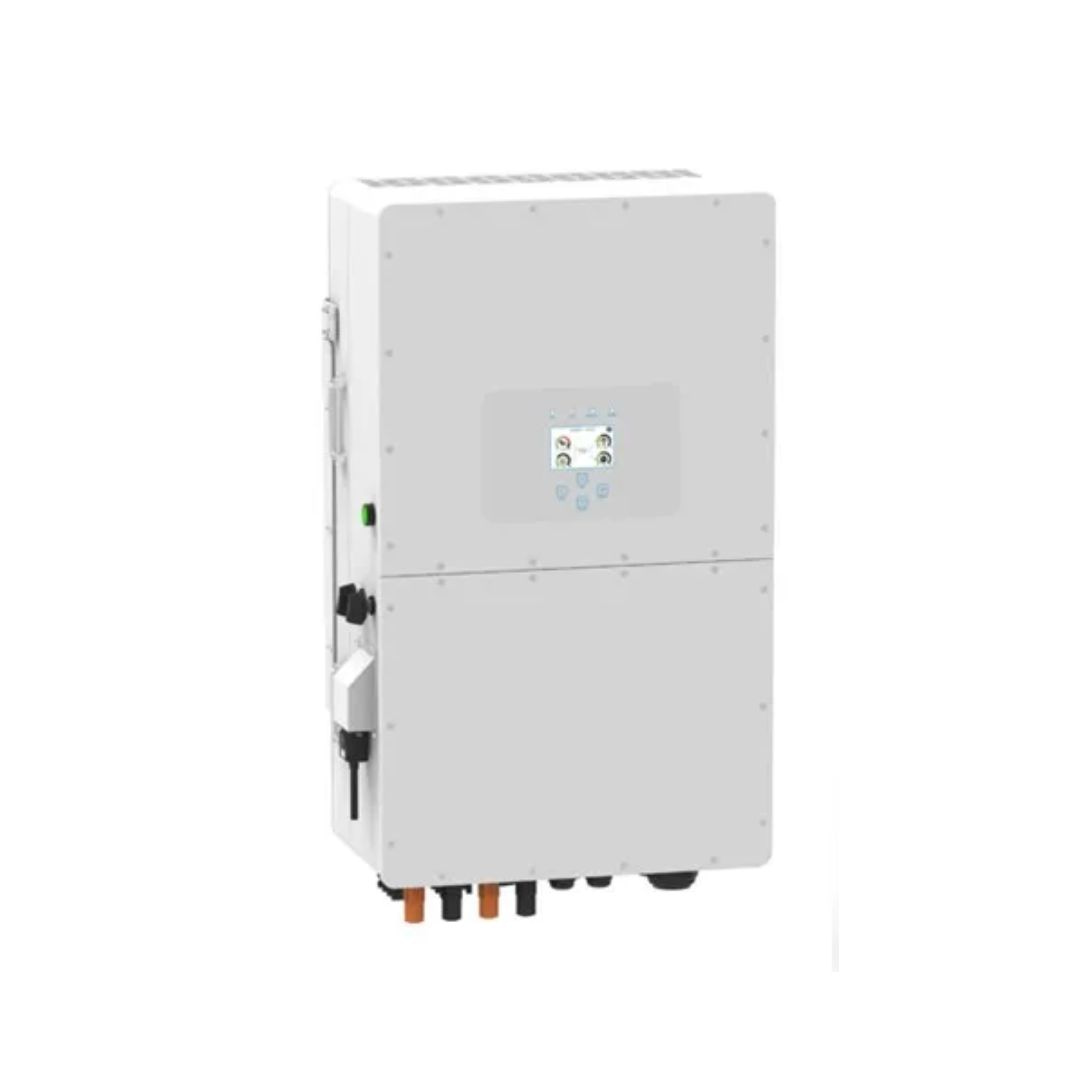

Deye Inverter 50kW

Description

Please Note:

Due to the size of this product, it cannot be shipped using our standard courier. We will be in touch with you to discuss alternative shipping options.

Description:

Battery Input Data
• Battery Type: Li-Ion
• Battery Voltage Range: 160VDC to 800VDC
• Maximum Charging Current: 50A + 50A
• Maximum Discharging Current: 50A + 50A
• Number Of Battery Input: 2
• Charging Strategy for Li-Ion Battery: Self adaption to BMS

PV String Input Data:
• Maximum DC Input Power: 65000W
• Maximum DC Input Voltage: 1000VDC
• Startup Voltage: 180VDC
• MPPT Voltage Range: 150VDC to 850VDC
• Full Load DC Voltage Range: 450VDC to 850VDC
• Rated DC Input Voltage: 600VDC
• PV Input Current: 36A + 36A + 36A + 36A
• Maximum PV (Isc): 55A + 55A + 55A + 55A
• No of MPP Trackers: 4
• Strings per MPP Tracker: 2

AC Output Data:
• Rated AC Output and UPS Power: 50000W
• Maximum AC Output Power: 55000W
• AC Output Rated Current: 75.8A / 72.5A
• Maximum AC Current: 83.3A
• Maximum Continuous AC Passthrough: 150A
• Peak Power (Off Grid): 1.5 time of rated Power, 10S
• Generator Input: 75.8A
• Smart Load: 150A
• AC Couple Current: 75.8A
• Power Factor: 0.8 Leading to 0.8 Lagging
• Output Frequency and Voltage: 50/60Hz; 3L/N/PE 220/380VAC, 230/400VAC
• Grid Type: Three Phase

Environment Limit:
• Operating Temperature Range: -40°C to 60°C
• Cooling: Smart Cooling (<45 dB)
• Communication with BMS: RS485 / CAN
• Ingress Protection: IP65
• Safety Certification: IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
