LUX-LXP-LB10K

SKU LUX-LXP-LB10K Categories , ,

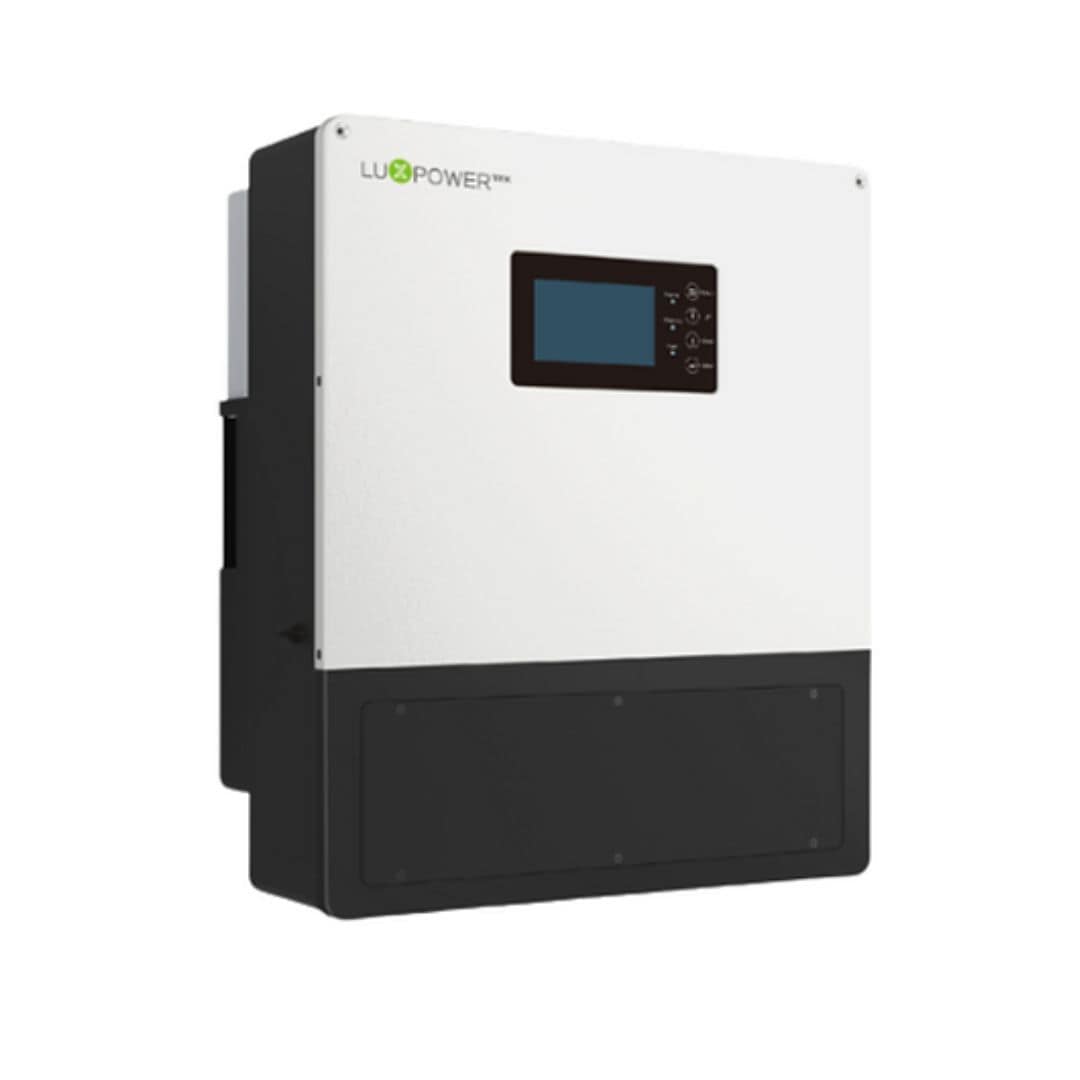

Lux Power: Inverter 10Kw Hybrid Single Phase (LUX-LXP-LB10K)

Please Note:
Due to the size of this product, it cannot be shipped using our standard courier. We will be in touch with you to discuss alternative shipping options.



R32,999.00 excl. VAT

Description

Battery Parameters

  • Compatible Battery Type: Lead-acid / Lithium
  • Nominal Battery Voltage: 48VDC
  • Battery Voltage Range: 40VDC-60VDC
  • Maximum Charge / Discharge Current: 210A
  • Maximum Charge / Discharge Power: 10 000W

DC PV Input

  • Max DC Input for Single MPPT: 12 000W / 7 000W / 7 000W
  • Maximum PV Input: 16 000W
  • DC Input Voltage Range: 100VDC-600VDC
  • Nominal DC Input Voltage: 360VDC
  • Full Power MPPT Voltage Range: 210VDC-500VDC
  • Maximum DC Input Current: 25A / 15A / 15A
  • MPPT Number / Strings per MPPT: 3(2/1/1)

AC Output (Grid)

  • Nominal Power: 10 000W
  • Nominal AC Voltage: 240VAC
  • Operating Voltage Range: 180VAC-270VAC
  • Maximum Continuous AC Current: 41.6A @ 240VAC
  • Nominal AC Frequency: 50Hz / 60Hz

UPS Output (With Battery)

  • UPS Max Output Power: 10 000W
  • UPS Nominal Output Voltage: 240VAC
  • UPS Nominal Output Frequency: 50Hz / 60Hz
  • UPS Nominal Output Current: 41.6A @ 240VAC
  • Peak Power: 14Kw 10Min / 16Kw 5 Min / 20Kw 500ms
  • Switching Time: <20ms

Environment Limit

  • Ingress Protection: IP65
  • Operating Temperature Range: -25°C to +60°C
  • Cooling: Fan
  • Communication: RS485 / WIFI / CAN”

Additional information

Weight 40 kg
Dimensions 65 × 44 × 22 cm
