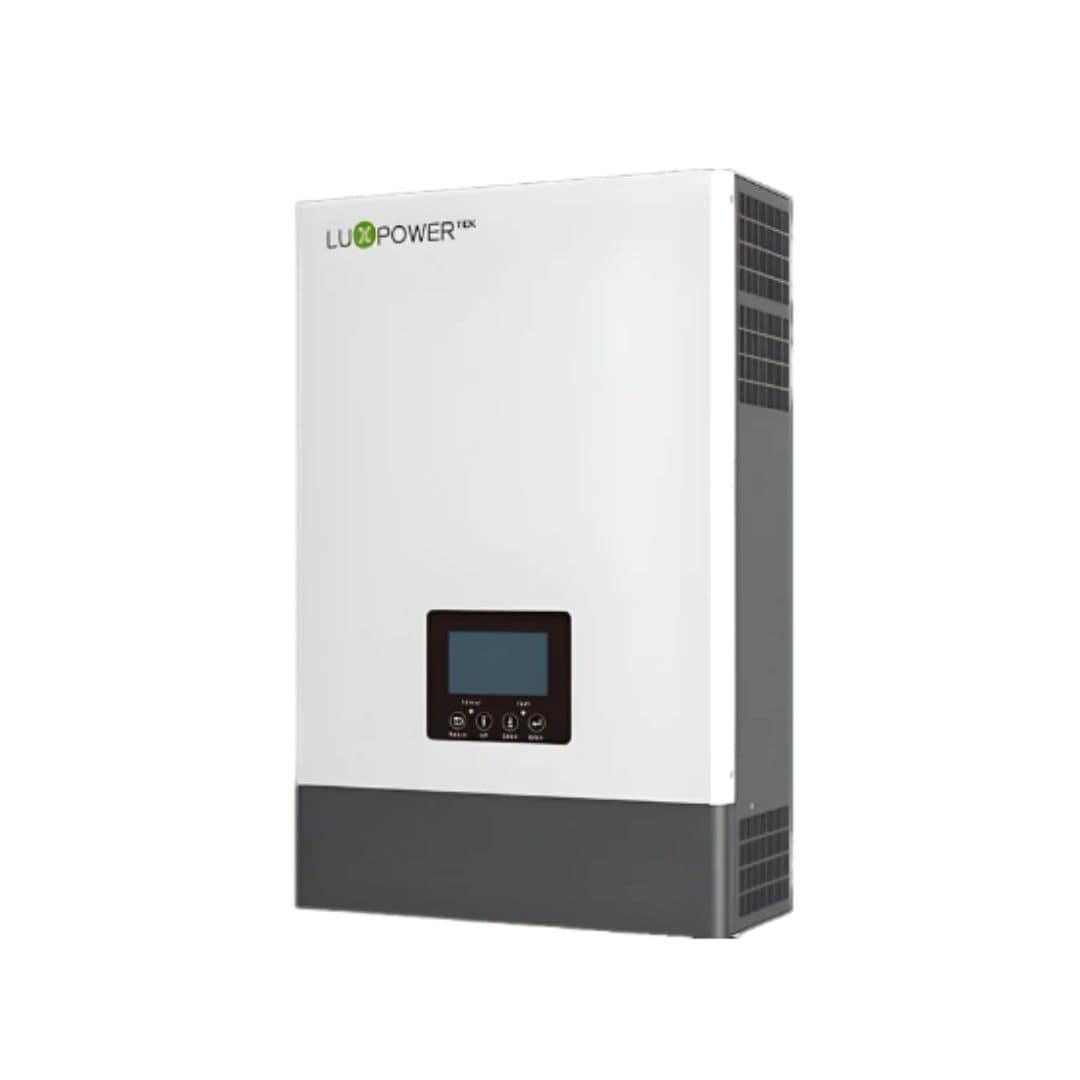

LuxPower Inverter 5kW

Description

Output:
• Rated Power: 5000W
• Parallel Supported: Yes
• Normal Output Voltage: 230VAC-240VAC, Split Phase 220VAC/110VAC
• Normal Output Frequency: 50Hz / 60Hz
• Surge Power: 10000VA
• Switch Time: 10ms
• Wave Form: Pure Sine Wave

Battery:
• Battery Type Supported: Lithium / Lead-Acid
• Normal Voltage: 51.2VDC / 48VDC
• Maximum Charging Voltage: 59VDC

Solar:
• Maximum PV Power: 3200W / 3200W
• Number of MPP Trackers: 2
• Maximum PV Open Circuit Voltage: 480VDC
• MPPT Voltage Range: 100VDC – 385VDC
• Maximum Solar Charge Current: 100A
• Maximum Solar Input Current: 13A / 13A

Grid:
• Normal Voltage: 230VAC
• AC Voltage Range: 110VAC-280VAC
• Maximum Charge Current: 60A
• Frequency Range: 50Hz / 60Hz (Auto Sensing)

Environment Limit:
• Ingress Protection: IP20
• Relative Humidity: 5% to 95% (Non Condensing)
• Operating Temperature Range: 0°C to +50°C
• Storage Temperature: -15°C to +60°C
• Communication: CAN / RS485/ WIFI / GPRS
